Gauss quadrature - II - Numerical Analysis

#%config InlineBackend.figure_format = 'svg'
from pylab import *

Fix an integer $n \ge 1$ . For a positive weight function $w(x)$ , we want to compute an approximation to the integral

I(f) = \int_a^b w(x) f(x) \ud x \approx I_n(f) = \sum_{j=1}^n w_j f(x_j)

(1)

Moreover, we want the degree of precision of $I_n$ to be as large as possible, i.e., $2n-1$ . The main idea is to construct the Hermite interpolant of $f(x)$ and take $I_n(f)$ to be the exact integral of the Hermite interpolant.

8.10.1General case¶

Let $\{ \phi_n\}$ be an orthogonal family of polynomials on $[a,b]$ with respect to the above weight function $w$ . Denote the zeros of $\phi_n(x)$ by

a < x_1 < x_2 < \ldots < x_n < b

(2)

These zeroes will come out as the nodes in the integration formula $I_n(f)$ . We recall some notation used previously. We write $\phi_n$ in terms of monomials

\phi_n(x) = A_n x^n + B_n x^{n-1} + \ldots

(3)

and define

a_n = \frac{A_{n+1}}{A_n}, \qquad \gamma_n = \ip{\phi_n, \phi_n} = \int_a^b w(x) [\phi_n(x)]^2 \ud x

(4)

Proof 1

(a) Construction of the formula: We will use Hermite interpolation at the $n$ zeros of $\phi_n$ to construct the quadrature rule. The interpolant is given by, see Section 6.8.2

H_n(x) = \sum_{j=1}^n f(x_j) h_j(x) + \sum_{j=1}^n f'(x_j) \tilde{h}_j(x) \in \poly_{2n-1}

(7)

where

\begin{gather} h_j(x) = [1 - 2\ell_j'(x_j)(x-x_j)] [\ell_j(x)]^2, \qquad \tilde{h}_j(x) = (x-x_j) [\ell_j(x)]^2 \\ \ell_j(x) = \prod_{i=1,i\ne j}^n \frac{x-x_i}{x_j - x_i} \end{gather}

(8)

The Hermite interpolation error is

\begin{align*} e_n(x) &= f(x) - H_n(x) \\ &= [\psi_n(x)]^2 f[x_1,x_1,\ldots,x_n,x_n,x] \\ &= \frac{[\psi_n(x)]^2}{(2n)!} f^{(2n)}(\eta), \quad \eta \in [a,b] \end{align*}

(9)

where

\psi_n(x) = (x-x_1)\ldots(x-x_n) = \frac{1}{A_n} \phi_n(x)

(10)

Now

\begin{align} \int_a^b w(x) f(x) \ud x &= \int_a^b w(x) H_n(x) \ud x + \int_a^n w(x) e_n(x) \ud x \\ &=: I_n(f) + E_n(f) \end{align}

(11)

The degree of precision of $I_n$ is atleast $2n-1$ since $H_n$ is exact for such polynomials. Moreover, for $f(x) = x^{2n}$ ,

\begin{aligned} E_n(x^{2n}) &= \int_a^b w(x) e_n(x) \ud x \\ &= \int_a^b w(x) \frac{[\psi_n(x)]^2}{(2n)!} f^{(2n)}(\eta) \ud x \\ &= \int_a^b w(x) \frac{[\psi_n(x)]^2}{(2n)!} (2n)! \ud x \\ &= \int_a^b w(x) [\psi_n(x)]^2 \ud x > 0 \end{aligned}

(12)

Hence the degree of precision of $I_n$ is exactly $2n-1$ .

(b) Simpler formula for $I_n(f)$ : The integration formula is

I_n(f) = \sum_{j=1}^n f(x_j) \int_a^b w(x) h_j(x) \ud x + \sum_{j=1}^n f'(x_j) \int_a^b w(x) \tilde{h}_j(x) \ud x

(13)

Since, see Section 6.3.1

\begin{gather} \ell_j(x) = \frac{\psi_n(x)}{(x-x_j) \psi_n'(x_j)} = \frac{\phi_n(x)}{(x-x_j) \phi_n'(x_j)} \\ \implies \tilde{h}_j(x) = (x-x_j) \ell_j(x) \cdot \ell_j(x) = \frac{\phi_n(x)}{\phi_n'(x_j)} \cdot \ell_j(x) \end{gather}

(14)

Hence

\int_a^b w(x) \tilde{h}_j(x) \ud x = \frac{1}{\phi_n'(x_j)}\int_a^b w(x) \phi_n(x) \ell_j(x) \ud x = 0, \qquad j=1,2,\ldots,n

(15)

since degree $(\ell_j) = n-1$ and $\phi_n$ is orthogonal to all polynomials of degree $< n$ . Hence

I_n(f) = \sum_{j=1}^n w_j f(x_j), \qquad w_j = \int_a^b w(x) h_j(x) \ud x

(16)

We do not need to know the derivatives $f'(x_j)$ !!!

(c) Uniqueness of $I_n(f)$ : Suppose we have another numerical integration formula

\int_a^b w(x) f(x) \ud x \approx \sum_{j=1}^n v_j f(z_j)

(17)

that has degree of precision $\ge 2n-1$ . For any $p \in \poly_{2n-1}$ , the Hermite interpolant using nodes $\{ z_j \}$ is exact and

p(x) = \sum_{j=1}^n p(z_j) g_j(x) + \sum_{j=1}^n p'(z_j) \tilde{g}_j(x)

(18)

where

\begin{gather} g_j(x) = [ 1 - 2 (x - z_j) \bar{\ell}_j (z_j) ] [\bar{\ell}_j(x)]^2 \\ \tilde{g}_j(x) = (x-z_j) [\bar{\ell}_j(x)]^2 = \frac{\bar{\ell}_j(x) \chi_n(x)}{\chi_n'(z_j)} \\ \bar{\ell}_j(x) = \prod_{i=1,i \ne j}^n \frac{x-z_i}{z_j - z_i}, \qquad \chi_n(x) = (x-z_1)\ldots(x-z_n) \end{gather}

(19)

Since the quadrature formula is exact for $p \in \poly_{2n-1}$

\begin{align*} \sum_{j=1}^n v_j p(z_j) &= \int_a^b w(x) p(x) \ud x \\ &= \sum_{j=1}^n p(z_j) \int_a^b w(x) g_j(x) \ud x + \sum_{j=1}^n p'(z_j) \int_a^b w(x) \tilde{g}_j(x) \ud x \end{align*}

(20)

Take $p(x) = \tilde{g}_i(x)$ . Note that

\tilde{g}_i(z_j) = 0, \qquad \tilde{g}_i'(z_j) = \delta_{ij}

(21)

Hence we get

0 = 0 + \tilde{g}_i'(z_i) \int_a^b w(x) \tilde{g}_i(x) \ud x

(22)

\implies \int_a^b w(x) \tilde{g}_i(x) \ud x = \frac{1}{\chi_n'(z_i)} \int_a^b w(x) \chi_n(x) \bar{\ell}_i(x) \ud x = 0, \qquad i=1,2,\ldots,n

(23)

Since degree $(\bar{\ell}_i)=n-1$ and they form a basis for $\poly_{n-1}$ , we get

\int_a^b w(x) \chi_n(x) p(x) = 0, \qquad \forall p \in \poly_{n-1}

(24)

Hence $\chi_n$ is orthogonal to $\poly_{n-1} = \textrm{span}(\phi_0,\phi_1, \ldots,\phi_{n-1})$ and note that $\chi_n \in \poly_n$ . But orthogonal polynomials are unique upto a multiplicative constant. Hence $\chi_n(x) = c \phi_n(x)$ and in particular their zeros are same, which imples that $z_j = x_j$ . Moreover, since degree $(h_i)=2n-1$

w_i = \int_a^b w(x) h_i(x)\ud x = \sum_{j=1}^n v_j \underbrace{h_i(x_j)}_{\delta_{ij}} = v_i

(25)

(d) Weights are positive:

\begin{aligned} w_i &= \int_a^b w(x) h_i(x) \ud x \\ &= \int_a^b w(x) [1 - 2 \ell_i'(x_i)(x-x_i)] [\ell_i(x)]^2 \ud x \\ &= \int_a^b w(x) [\ell_i(x)]^2 \ud x - 2 \ell_i'(x_i) \underbrace{\int_a^b w(x) \tilde{h}_i(x) \ud x}_{=0} \\ &= \int_a^b w(x) [\ell_i(x)]^2 \ud x > 0 \end{aligned}

(26)

(e) Error formula: Assume that $f \in \cts^{2n}[a,b]$ . Then the integration error is

\begin{aligned} E_n(f) &= \int_a^b w(x) e_n(x) \ud x \\ &= \int_a^b w(x) [\psi_n(x)]^2 f[x_1,x_1,\ldots,x_n,x_n,x] \ud x \\ &= f[x_1,x_1,\ldots,x_n,x_n,\xi] \int_a^b w(x) [\psi_n(x)]^2 \ud x, \quad \xi\in[a,b] \\ &= \frac{f^{(2n)}(\eta)}{(2n)!} \frac{1}{A_n^2} \int_a^b w(x) [\phi_n(x)]^2 \ud x \\ &= \frac{f^{(2n)}(\eta)}{(2n)!} \frac{1}{A_n^2} \gamma_n \end{aligned}

(27)

(f) Formula for the weights: We have already shown that the weights are positive. To obtain a simpler formula, take $f(x) = \ell_i(x)$ and note that degree( $\ell_i)=n-1$ , it can be exactly integrated

\int_a^b w(x) \ell_i(x) \ud x = \sum_{j=1}^n w_j \ell_i(x_j) + E_n(\ell_i) = w_i + 0

(28)

Hence (this was also shown in Section 8.8.2)

w_i = \int_a^b w(x) \ell_i(x) \ud x = \frac{1}{\phi_n'(x_i)} \int_a^b \frac{w(x) \phi_n(x)}{(x-x_i)} \ud x

(29)

Recall the Christoffel-Darboux identity from Section 8.9.3

\sum_{k=0}^n \frac{\phi_k(x) \phi_k(y)}{\gamma_k} = \frac{\phi_{n+1}(x) \phi_n(y) - \phi_n(x) \phi_{n+1}(y)}{a_n \gamma_n (x-y)}, \qquad x \ne y

(30)

Take $y = x_i$ and use $\phi_n(y)=\phi_n(x_i)=0$

\sum_{k=0}^{n-1} \frac{\phi_k(x) \phi_k(x_i)}{\gamma_k} = -\frac{\phi_n(x) \phi_{n+1}(x_i)}{a_n \gamma_n (x-x_i)}

(31)

Multiply by $w(x)$ and integrate both sides; by orthogonality of $\{ \phi_k \}$

\int_a^b w(x) \phi_k(x) \ud x = 0, \qquad k \ge 1

(32)

only the term $k=0$ in the sum survives, and since $\phi_0(x)=$ constant, we get

\begin{align} \frac{1}{\gamma_0} \int_a^b w(x) \phi_0(x)\phi_0(x_i)\ud x = 1 &= - \frac{\phi_{n+1}(x_i)}{a_n \gamma_n} \int_a^b \frac{w(x) \phi_n(x)}{x-x_i} \ud x\\ &= - \frac{\phi_{n+1}(x_i)}{a_n \gamma_n} w_i \phi_n'(x_i) \end{align}

(33)

which proves the formula for the weights.

8.10.2Gauss-Legendre quadrature¶

For weight function $w(x) = 1$ on $[-1,1]$ the orthogonal polynomials are the Legendre functions $P_n(x)$ . The integral is approximated by

I(f) = \int_{-1}^1 f(x) \ud x \approx I_n(f) = \sum_{j=1}^n w_j f(x_j)

(34)

The nodes $\{x_j\}$ are the zeros of $P_n(x)$ and the weights are obtained from (6)

w_i = -\frac{2}{(n+1) P_n'(x_i) P_{n+1}(x_i)}, \qquad i=1,2,\ldots,n

(35)

and the error is

\begin{gather} E_n(f) = \frac{2^{2n+1} (n!)^4}{(2n+1) [(2n)!]^2} \frac{f^{(2n)}(\eta)}{(2n)!} = e_n \frac{f^{(2n)}(\eta)}{(2n)!} \\ e_n = \frac{2^{2n+1} (n!)^4}{(2n+1) [(2n)!]^2} \end{gather}

(36)

The function scipy.integrate.fixed_quad performs Gauss-Legendre quadrature.

Example 1

I = \int_0^\pi \ee^x \cos(x) \ud x = -\half ( 1 + \ee^\pi )

(37)

from scipy.integrate import fixed_quad

f = lambda x: exp(x)*cos(x)
a,b = 0.0,pi
qe = -0.5*(1.0 + exp(pi)) # Exact integral

N = arange(2,10)
err = zeros(len(N))
for (i,n) in enumerate(N):
    val = fixed_quad(f,a,b,n=n)
    err[i] = abs(val[0]-qe)
    print('%5d %24.14e' % (n,err[i]))

figure()
semilogy(N,err,'o-')
xlabel('n'), ylabel('Error');

    2     2.65864149305589e-01
    3     5.70741337850631e-02
    4     1.56826095077278e-04
    5     1.77805009098364e-05
    6     1.47122829474711e-08
    7     1.14247633575815e-09
    8     4.15667500419659e-13
    9     2.84217094304040e-14

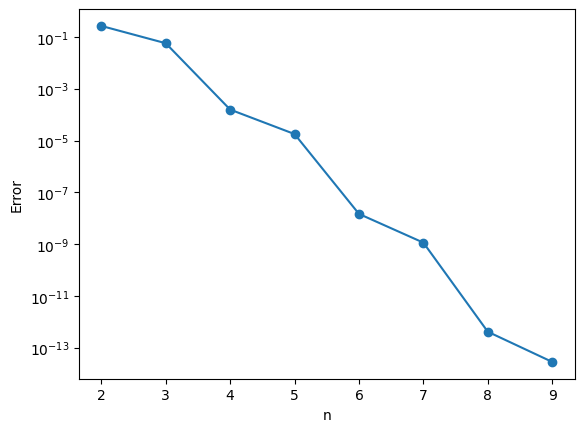

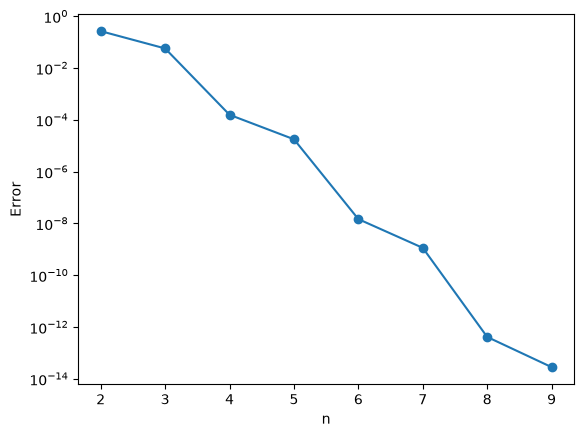

The error decreases much faster than trapezoidal (see Example 1) or Simpson rules (see Example 1). With 8 nodes, the error has reached almost machine zero.

8.10.3Asymptotic behavior of error¶

Define

M_m = \max_{x \in [-1,1]} \frac{|f^{(m)}(x)|}{m!}, \qquad m \ge 0

(38)

For a large class of infinitely differentiable functions on $[-1,1]$

\sup_m M_m < \infty

(39)

In fact, for many functions

\lim_{m \to \infty} M_m = 0

(40)

e.g., analytic functions like $\ee^x$ , $\cos(x)$ , etc. For such functions, the Gauss quadrature has error

|E_n(f)| \le e_n M_{2n}

(41)

The speed of convergence depends on $e_n$ . Using Stirling approximation

n! \approx \ee^{-n} n^n \sqrt{2\pi n}

(42)

we get

e_n \approx \frac{\pi}{4^n}

(43)

E.g., $e_5 = 0.00293$ while $\pi/4^5 = 0.00307$ . Hence we get the asymptotic error bound

|E_n(f)| \le \frac{\pi}{4^n} M_{2n}

(44)

This is exponential convergence of the error. Compare this to

\begin{align} \textrm{Trapezoid:} \qquad & |E_n(f)| \le c/n^2 \\ \textrm{Simpson:} \qquad & |E_n(f)| \le c/n^4 \end{align}

(45)

Hence for nice functions Gauss quadrature is very accurate as it converges exponentially fast.

8.10.4Relation to minimax approximation¶

We can see the optimal accuracy of Gauss quadrature by its relation to the best approximation.

Proof 2

We have $E_n(p)=0$ for any $p \in \poly_{2n-1}$ and the error $E_n$ is a linear operator. Take $p = q_{2n-1}^* \in \poly_{2n-1}$ be the minimax approximation to $f$ on $[a,b]$ . Then

\begin{aligned} E_n(f) &= E_n(f) - E_n(q_{2n-1}^*) \\ &= E_n(f - q_{2n-1}^*) \\ &= \int_a^b w(x)[f(x) - q_{2n-1}^*(x)] \ud x - \sum_{j=1}^n w_j[f(x_j) - q_{2n-1}^*(x_j)] \end{aligned}

(47)

so that

|E_n(f)| \le \norm{f - q_{2n-1}^*}_\infty\left[ \int_a^b w(x) \ud x + \sum_{j=1}^n w_j \right]

(48)

since $w(x) \ge 0$ and $w_j > 0$ . As the quadrature rule is exact for constant function

\int_a^b w(x) \ud x = \sum_{j=1}^n w_j

(49)

which completes the proof.

Example 2 (Integrals on

[0,\infty)

)

Integrals of the form

\int_0^\infty \ee^{-x} f(x) \ud x \approx \sum_{j=1}^n w_j f(x_j)

(50)

can be computed using Gauss-Laguerre quadrature. Laguerre polynomials are orthogonal on $[0,\infty)$ wrt the weight $w(x) = \ee^{-x}$ , see Section 7.6.7. The quadrature points $x_j$ are the roots of $L_n(x)$ and the weights are given by

w_j = \frac{x_j}{(n+1)^2 [L_{n+1}(x_j)]^2}

(51)

We can use Gauss-Laguerre quadrature for integrals of the form

I = \int_0^\infty g(x) \ud x

(52)

by writing it as

I = \int_0^\infty \ee^{-x}[ \ee^x g(x)] \ud x = \int_0^\infty \ee^{-x} f(x) \ud x

(53)

See Atkinson, 2004, page 308-309.

\int_0^\infty \frac{x}{\ee^x - 1} \ud x = \frac{\pi^2}{6}, \qquad \int_0^\infty \frac{x}{(1 + x^2)^5} \ud x = \frac{1}{8}, \qquad \int_0^\infty \frac{1}{1 + x^2} \ud x = \frac{\pi}{2}

(54)

f1  = lambda x: x/(exp(x) - 1)
Ie1 = pi**2/6.0

f2  = lambda x: x/(1.0 + x**2)**5
Ie2 = 1.0/8.0

f3  = lambda x: 1.0/(1.0 + x**2)
Ie3 = 0.5*pi

n=2
for i in range(6):
    x,w = polynomial.laguerre.laggauss(n)
    I1 = sum(exp(x)*f1(x)*w)
    I2 = sum(exp(x)*f2(x)*w)
    I3 = sum(exp(x)*f3(x)*w)
    print('%5d %15.6e %15.6e %15.6e' % (n,I1-Ie1,I2-Ie2,I3-Ie3))
    n = 2*n

    2   -1.005366e-04    8.052137e-02   -7.753935e-02
    4   -1.277597e-05    4.204565e-02   -6.960681e-02
    8    9.479830e-08   -1.271209e-02   -3.703629e-02
   16   -3.166267e-11    1.389345e-03   -1.705859e-02
   32   -1.953993e-14   -3.053190e-05   -8.313623e-03
   64    3.619327e-14   -1.058451e-07   -4.071501e-03
