Homotopy and continuation methods

from pylab import *
from scipy.integrate import odeint
from scipy.linalg import solve, norm

The material of this Chapter is from Kincaid & Cheney, 2002.

Let $f : X \to Y$ and consider the problem: find $x \in X$ such that $f(x) = 0$ . This problem may be difficult to solve. For Newton method, we need a good initial guess, which we may not know.

1An ODE¶

The solution of $h(t,x)=0$ depends on the parameter $t$ , so $x(t)$ satisfies

h(t, x(t)) = 0

(8)

Differentiate wrt $t$

h_t (t, x(t)) + h_x(t,x(t)) x'(t) = 0

(9)

so that

x'(t) = - [h_x(t,x(t))]^{-1} h_t(t,x(t))

(10)

For this ODE to be valid, we need $h$ to be differentiable wrt $t$ and $x$ and $h_x$ must be non-singular. Suppose we know that $x_0$ solves $h(0,x)=0$ . We solve the ODE upto $t=1$ with initial condition $x(0) = x_0$ .

Example 4

Let $X = Y = \re^2$ and $x = (\xi_1, \xi_2) \in \re^2$ . Consider

f(x) = \begin{bmatrix} \xi_1^2 - 3 \xi_2^2 + 3 \\ \xi_1 \xi_2 + 6 \end{bmatrix}

(11)

Let $x_0 = (1,1)$ and define the homotopy

h(t,x) = t f(x) + (1-t)(f(x) - f(x_0))

(12)

Then

h_x = f'(x) = \left[ \df{f_i}{\xi_j} \right]_{ij} = \begin{bmatrix} 2\xi_1 & - 6 \xi_2 \\ \xi_2 & \xi_1 \end{bmatrix}, \qquad h_t = f(x_0) = \begin{bmatrix} 1 \\ 7 \end{bmatrix}

(13)

h_x^{-1} = \frac{1}{\Delta} \begin{bmatrix} \xi_1 & 6 \xi_2 \\ -\xi_2 & 2\xi_1 \end{bmatrix}, \qquad \Delta = 2\xi_1^2 + 6 \xi_2^2

(14)

The ODE is given by

\dd{}{t}\begin{bmatrix} \xi_1 \\ \xi_2 \end{bmatrix} = -h_x^{-1} h_t = -\frac{1}{\Delta} \begin{bmatrix} \xi_1 + 42 \xi_2 \\ -\xi_2 + 14 \xi_1 \end{bmatrix}

(15)

Integrating the ODE from $t=0$ to $t=1$ using some numerical ODE solver, we get

x(1) \approx \begin{bmatrix} -2.961 \\ 1.978 \end{bmatrix}

(16)

while the exact root is $\begin{bmatrix} -3 \\ 2 \end{bmatrix}$ . Starting with the approximate solution of the ODE, perform a few steps of Newton-Raphson iterations to get a more accurate estimate of the root.

2Relation to Newton method¶

Consider the homotopy

h(t,x) = f(x) - \ee^{-t} f(x_0)

(19)

so that

h(0,x) = f(x) - f(x_0), \qquad h(\infty,x) = f(x)

(20)

The curve $x(t)$ such that

h(t,x(t)) = 0 = f(x(t)) - \ee^{-t} f(x_0)

(21)

satisfies the ODE

0 = f'(x(t)) x'(t) + \ee^{-t} f(x_0) = f'(x(t)) x'(t) + f(x(t))

(22)

so that

x'(t) = -[f'(x(t))]^{-1} f(x(t))

(23)

Applying forward Euler scheme with $\Delta t = 1$ we get

x_{n+1} = x_n - [f'(x_n)]^{-1} f(x_n)

(24)

we get the Newton-Raphson method.

Example 5

We find solution of $f(x) = 0$ by homotopy method applied to

h(t,x) = t f(x) + (1-t)(f(x) - f(x_0))

(25)

We solve the ODE

x'(t) = -[h_x(t,x)]^{-1} h_t(t,x), \qquad x(0) = x_0

(26)

Let $x = (\xi_1, \xi_2) \in R^2$ . Consider

f(x) = \begin{bmatrix} \xi_1^2 - 3 \xi_2^2 + 3 \\ \xi_1 \xi_2 + 6 \end{bmatrix}

(27)

Let $x_0 = (1,1)$ . Then

h_x = f'(x) = \begin{bmatrix} 2\xi_1 & - 6 \xi_2 \\ \xi_2 & \xi_1 \end{bmatrix}, \qquad h_t = f(x_0) = \begin{bmatrix} 1 \\ 7 \end{bmatrix}

(28)

h_x^{-1} = \frac{1}{\Delta} \begin{bmatrix} \xi_1 & 6 \xi_2 \\ -\xi_2 & 2\xi_1 \end{bmatrix}, \qquad \Delta = 2\xi_1^2 + 6 \xi_2^2

(29)

The ODE is given by

\frac{d}{dt}\begin{bmatrix} \xi_1 \\ \xi_2 \end{bmatrix} = -h_x^{-1} h_t = -\frac{1}{\Delta} \begin{bmatrix} \xi_1 + 42 \xi_2 \\ -\xi_2 + 14 \xi_1 \end{bmatrix}

(30)

This is the function whose roots are required.

def f(x):
    y = zeros(2)
    y[0] = x[0]**2 - 3*x[1]**2 + 3
    y[1] = x[0]*x[1] + 6
    return y

def df(x):
    y = array([[2*x[0],-6*x[1]],
               [x[1],  x[0]]])
    return y

This is the rhs of the ODE obtained from homotopy method.

def F(x,t):
    y = zeros(2)
    delta = 2*x[0]**2 + 6*x[1]**2
    y[0] = -(x[0] + 42*x[1])/delta
    y[1] = -(-x[1] + 14*x[0])/delta
    return y

We solve the ode with a relaxed error tolerance.

x0 = array([1.0,1.0])
t = linspace(0,1,100)
x = odeint(F,x0,t,rtol=0.1)

# plot results

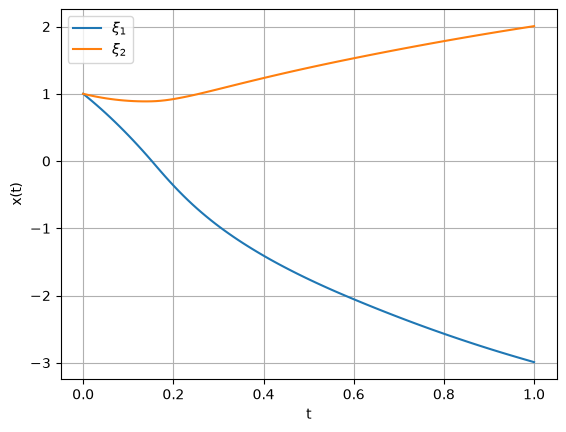

plot(t,x), xlabel('t'), ylabel('x(t)'), grid(True)

# Final solution
xf = array([x[-1,0],x[-1,1]])
print('x =',xf)
print('f(x) =',f(xf))

x = [-2.99046055  2.00603356]
f(x) = [-0.12965756  0.00103578]

Now we can improve the final solution by applying Newton-Raphson method.

N = 10
eps = 1.0e-13

print('%18.10e %18.10e %18.10e' % (xf[0], xf[1], norm(f(xf))))
for i in range(N):
    J = df(xf)
    dx = solve(J,-f(xf))
    xf = xf + dx
    print('%18.10e %18.10e %18.10e' % (xf[0], xf[1], norm(f(xf))))
    if norm(dx) < eps*norm(xf):
        break

 -2.9904605534e+00   2.0060335560e+00   1.2966169984e-01
 -2.9999822220e+00   1.9999926789e+00   6.0518131105e-05
 -3.0000000000e+00   2.0000000000e+00   2.0260243223e-10
 -3.0000000000e+00   2.0000000000e+00   0.0000000000e+00
 -3.0000000000e+00   2.0000000000e+00   0.0000000000e+00

3Linear programming¶

Let $c,x \in \re^n$ , $A \in \re^{m \times n}$ , $m < n$ and consider the constrained optimization problem

\begin{cases} \max\limits_{x \in \re^n} c^\top x \\ \textrm{subject to } A x = b, \qquad x \ge 0 \end{cases}

(31)

Choose a starting point $x^0$ which satisfies the constraints, i.e.

x^0 \in \mathcal{F} = \{ x \in \re^n : A x = b, \quad x \ge 0 \}

(32)

Our goal is to find $x^1$ such that $c^\top x^1 > c^\top x^0$ and $x^1 \in \mathcal{F}$ . Equivalently, find a curve $x(t)$ such that

$x(0) = x^0$
$x(t) \ge 0$ $\forall t \ge 0$
$A x(t) = b$
$c^\top x(t)$ is increasing function of $t$ , $t \ge 0$

Let us try to find an equation satisfied by such a curve $x(t)$

x'(t) = f(x), \qquad x(0) = x^0

(33)

To satisfy (2), choose $f$ such that $f_i(x) \to 0$ as $x_i \to 0$ . One such choice is

D(x) = \diag{[x_1, x_2, \ldots, x_n]}

(34)

f(x) = D(x) G(x), \qquad x_i' = x_i G_i(x)

(35)

To satisfy (3) we must have $A x'(t) = 0$ or $A D(x) G(x) = 0$ . Choose

G(x) = P(x) H(x)

(36)

where $P : \re^n \to$ null space of $AD(x)$ . So we can take

P(x) = \textrm{orthogonal projection of $x$ into the null space of $AD(x)$}

(37)

The null space of $AD(x)$ is a subspace of $\re^n$ . By Projection Theorem in Hilbert spaces, we have

\forall v \in \re^n, \qquad Pv \in \textrm{null space of } AD(x)

(38)

\textrm{ iff } \ip{v-Pv,w} = 0 \quad \forall w \in \textrm{null space of } AD(x)

(39)

In particular

\ip{v - Pv, Pv} = 0, \qquad \forall v \in \re^n

(40)

Such a $P$ is given by

P = I - (AD)^\top [ (AD)(AD)^\top]^{-1} (AD)

(41)

The existence of $P$ requires that $(AD)(AD)^\top = (m\times n)(n\times m) = (m \times m)$ is invertible, and hence rank $AD = m$ . This is true if each $x_i > 0$ and rank $A=m$ .

Now (4) will be satisfied by the solution of the ODE if

\begin{aligned} 0 \le& \dd{}{t} c^\top x(t) \\ =& c^\top f(x) \\ =& c^\top D P(x) H(x) \\ =& (Dc)^\top P(x) H(x) \end{aligned}

(42)

Let us choose $H(x) = D(x) c$ , then

\begin{aligned} (Dc)^\top P (Dc) =& v^\top P v, \qquad v = Dc \\ =& \ip{v, Pv} \\ =& \ip{v-Pv+Pv,Pv} \\ =& \ip{v-Pv,Pv} + \ip{Pv,Pv} \\ =& \ip{Pv,Pv} \\ \ge& 0 \end{aligned}

(43)

We have constructed an ODE model whose solution has all the required properties. How do we compute $Pv$ ? Using the definition of $P$ requires computing an inverse matrix which can be expensive if the sizes involved are large. Instead, define $B=AD$ and given $v \in \re^n$ , compute $Pv$ by the following steps.

Solve for $z$
$B B^\top z = Bv$
(44)
$Pv = v - B^\top z$

Now we are in a position to solve the ODE

x'(t) = D(x) P(x) D(x) c, \qquad x(0) = x^0 \in \mathcal{F}

(45)

The simplest approach is the Euler method which finds $x^{k+1} \approx x(t_k+\Delta t_k)$ from

\frac{x^{k+1} - x^k}{\Delta t_k} = f(x^k), \qquad k=0,1,2,\ldots

(46)

x^{k+1} = x^k + \Delta t_k f(x^k)

(47)

It is easy to verify that $Ax^{k+1}=b$ since $Af(x^k) = 0$ . It remains to ensure that $x^{k+1} > 0$ which may not be automatically satisfied by the Euler method. We can satisfy this condition by choosing $\Delta t_k$ small enough,

x_i^{k+1} = x_i^k + \Delta t_k f_i(x^k) \ge 0

(48)

e.g.,

\Delta t_k = \frac{9}{10} \min_{i} \left[ \frac{-x_i^k}{f_i(x^k)} \right]

(49)

The factor $9/10$ ensures the strict inequality $x^{k+1} > 0$ .
