Stiff ODE: Forward Euler with variable step

from pylab import *

Example 1

Consider the stiff ODE

y' = -100(y - \sin(t)), \qquad t \ge 0

(1)

y(0) = 1

(2)

The exact solution is

y(t) = \frac{10101}{10001}e^{-100t} - \frac{100}{10001}(\cos t - 100 \sin t)

(3)

The next two functions implement the right hand side of the ode and the exact solution.

def f(t,y):
    return -100.0*(y - sin(t))

def yexact(t):
    return 10101.0*exp(-100*t)/10001.0 - 100.0*(cos(t) - 100.0*sin(t))/10001.0

Forward Euler

y_n = y_{n-1} - 100 h [ y_{n-1} - \sin(t_{n-1})]

(4)

The following function uses step size h = hlo for $t \in [0,0.1]$ and h = hhi for $t > 0.1$ .

def ForwardEuler(t0,y0,T,hlo,hhi):
    t, y = [], []
    t.append(t0)
    y.append(y0)
    h = hlo
    n = 1
    while t[n-1]+h <= T:
        if t[n-1] > 0.1:
            h = hhi
        y.append(y[n-1] + h*f(t[n-1],y[n-1]))
        t.append(t[n-1] + h)
        n += 1
    t, y = array(t),array(y)
    plot(t,y,t,yexact(t))
    title("Forward Euler")
    grid(True)
    legend(("Euler","Exact"));
    return t, y

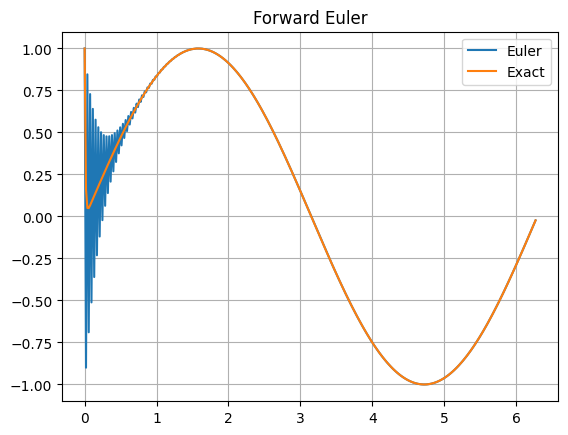

Use a step size slightly below the stability limit of 0.02 for the entire simulation.

t0, y0 = 0.0, 1.0
T  = 2*pi
t,y = ForwardEuler(t0,y0,T,0.019,0.019)

The solution is oscillatory initially; use a smaller step size of 0.01.

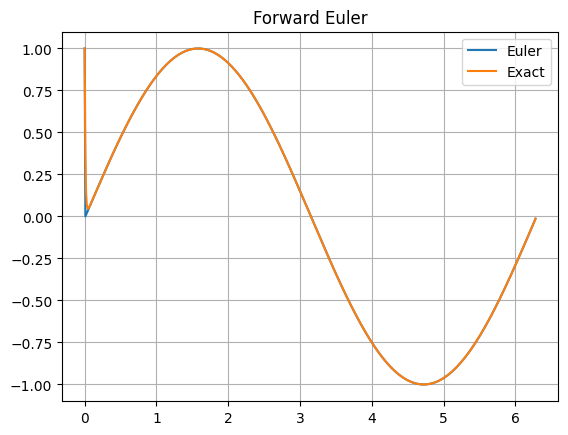

t,y = ForwardEuler(t0,y0,T,0.01,0.01)

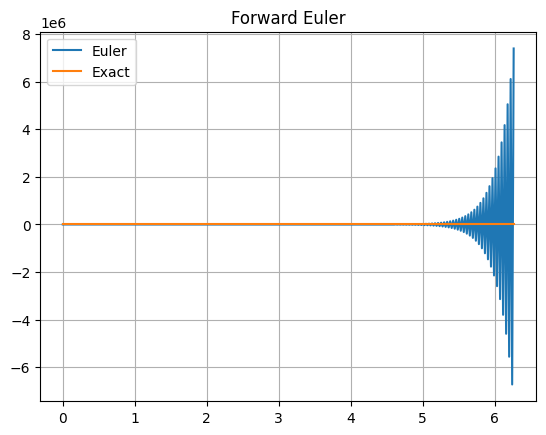

The exponential decay happens quite fast, so we may think of using a small step initially and then increase it once the decay is completed. We start with a step size of $h=0.01$ until $t=0.1$ after which we increase it to $h=0.021$ which is slightly above the stability limit of 0.02.

t,y = ForwardEuler(t0,y0,T,0.01,0.021)

The exponential mode might have decayed but we have to still use a small step size for the entire simulation, since this mode can grow back and lead to instability.
