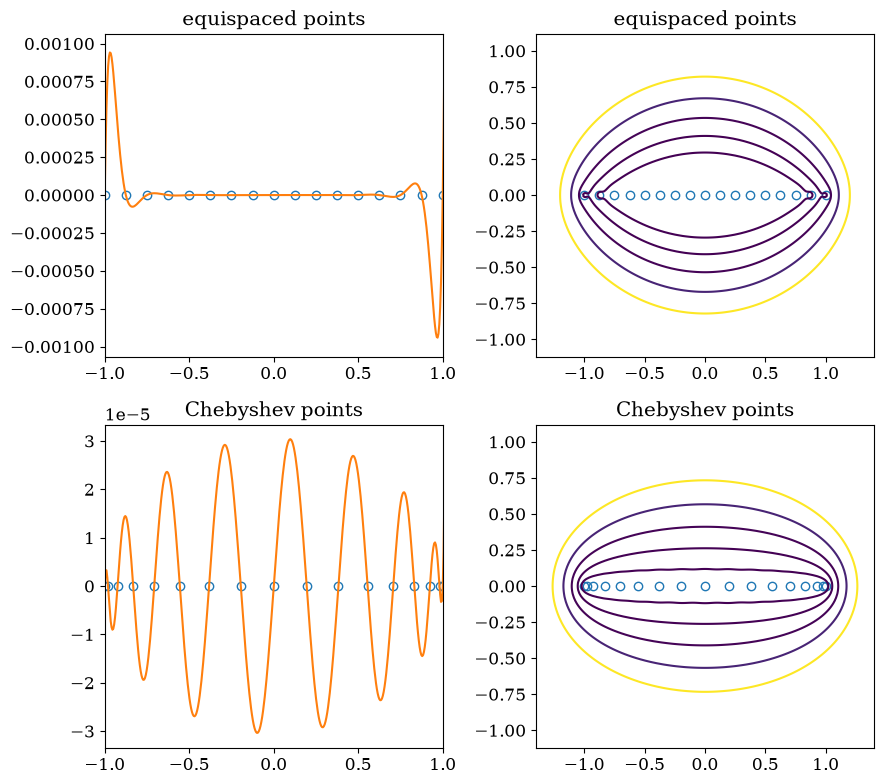

p10: Polynomials and corresponding equipotential curves

#%config InlineBackend.figure_format='svg'
from numpy import pi,linspace,arange,abs,cos,poly,polyval,meshgrid,real,imag
from matplotlib.pyplot import figure,subplot,plot,title,axis,contour

N = 16
figure(figsize=(9,8))
for i in range(2):
    if i==0:
        s = 'equispaced points'; x = -1.0 + 2.0*arange(0,N+1)/N
    if i==1:
        s = 'Chebyshev points'; x = -cos(pi*arange(0,N+1)/N)
    p = poly(x)
    # Plot p(x)
    xx = linspace(-1.01,1.01,400,True)
    pp = polyval(p,xx)
    fig = subplot(2,2,2*i+1)
    plot(x,0*x,'o',xx,pp)
    fig.set_xlim(-1,1)
    title(s)

    # Plot equipotential curves
    subplot(2,2,2*i+2)
    plot(real(x),imag(x),'o')
    axis([-1.4,1.4,-1.12,1.12])
    xgrid = linspace(-1.4,1.4,250,True)
    ygrid = linspace(-1.12,1.12,250,True)
    xx,yy = meshgrid(xgrid,ygrid,indexing='ij')
    zz = xx + 1j*yy
    pp = polyval(p,zz)
    levels = 10.0**arange(-4,1)
    contour(xx,yy,abs(pp),levels)
    title(s);
